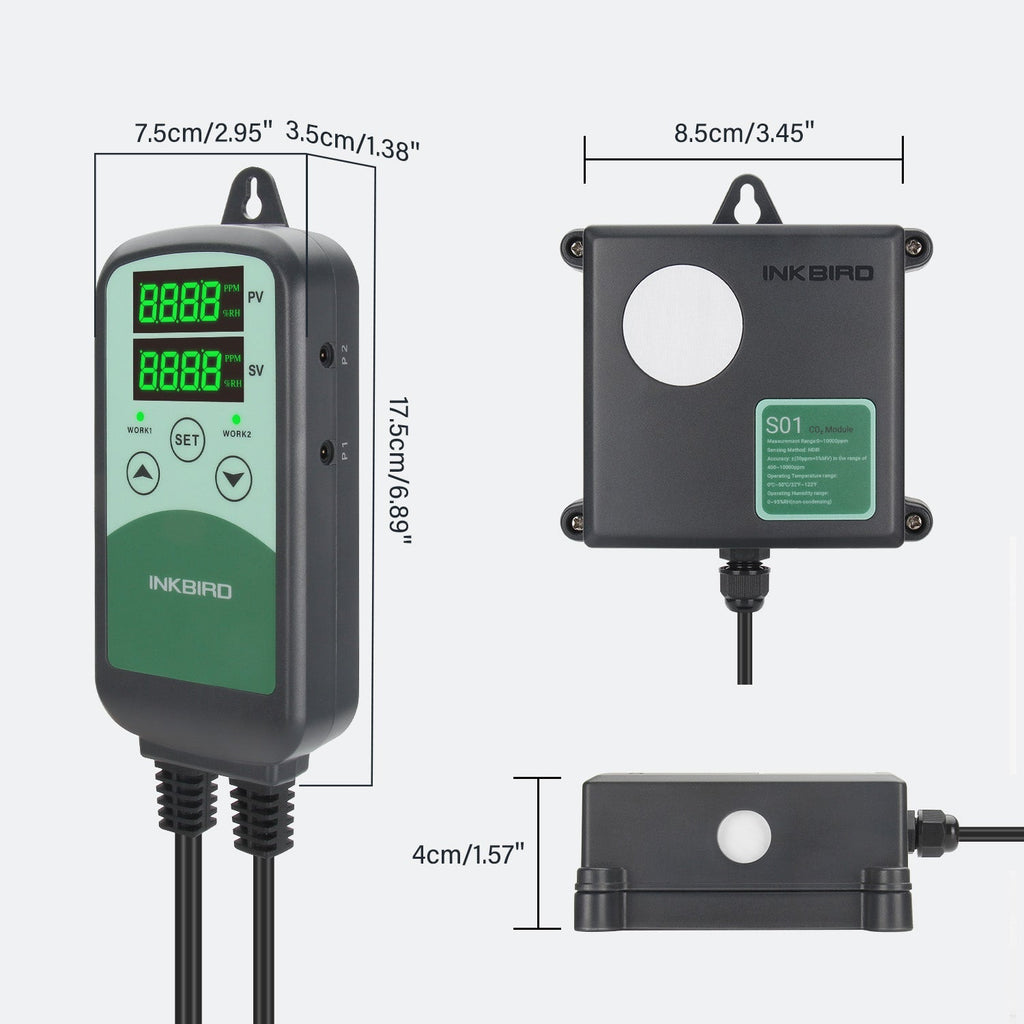

Programmable CO2 Controller with S01 Sensor ICC-500T

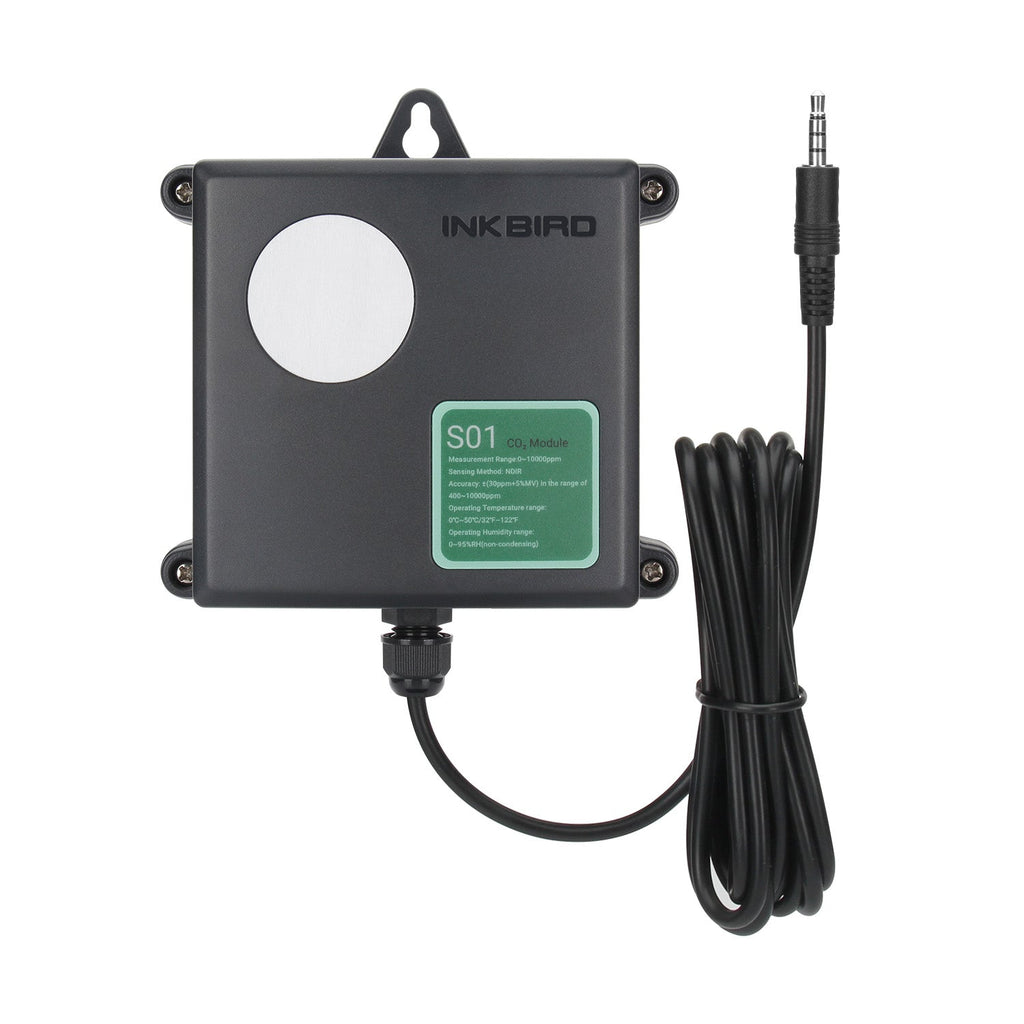

The difference between the S01 and B01 sensor version

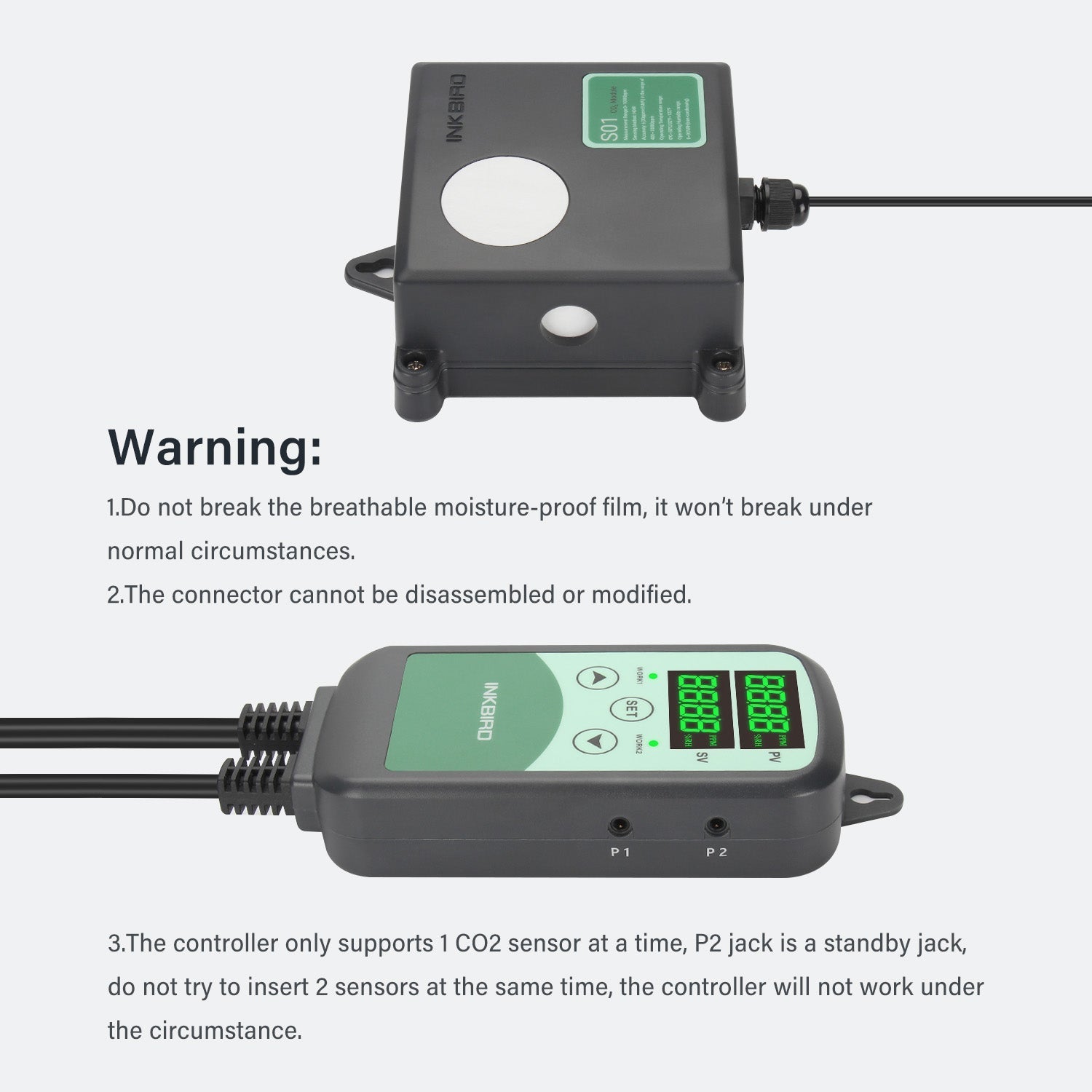

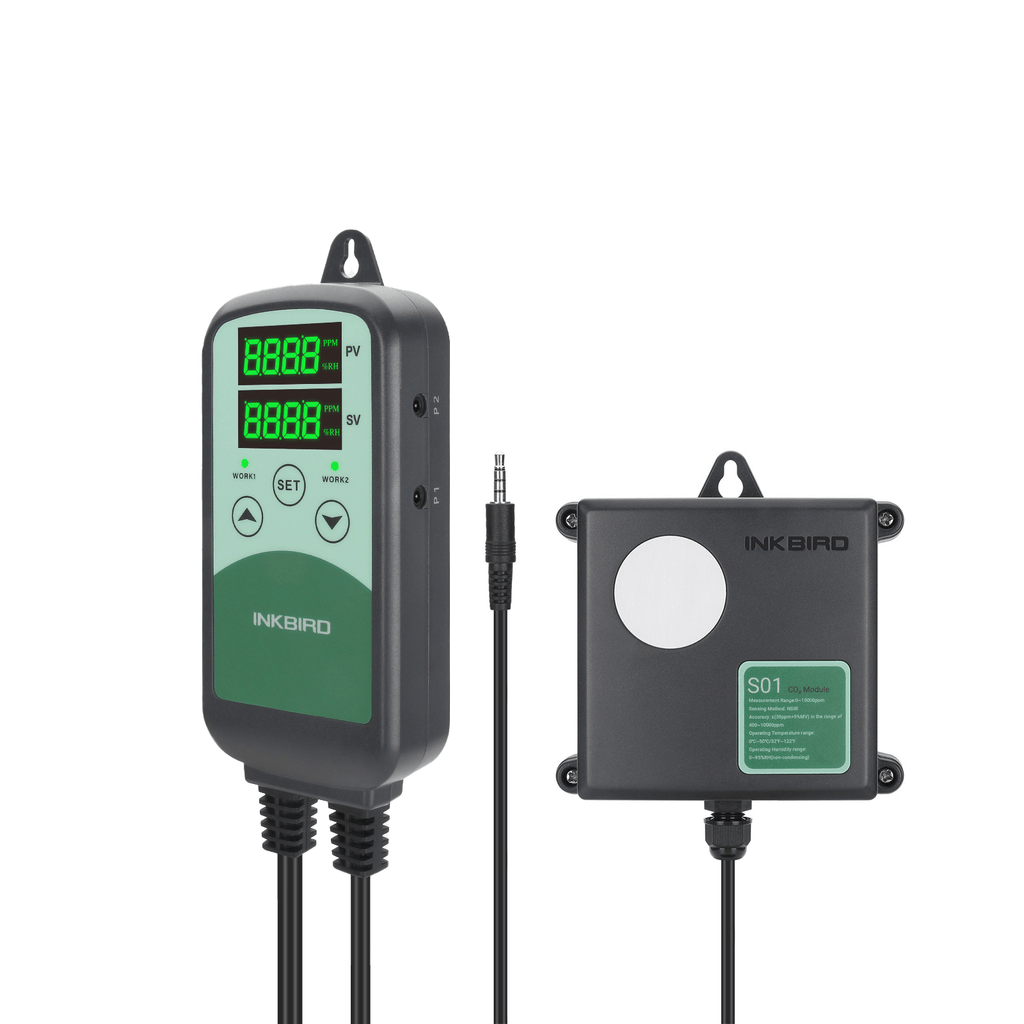

Plug the CO₂ Controller and the sensor

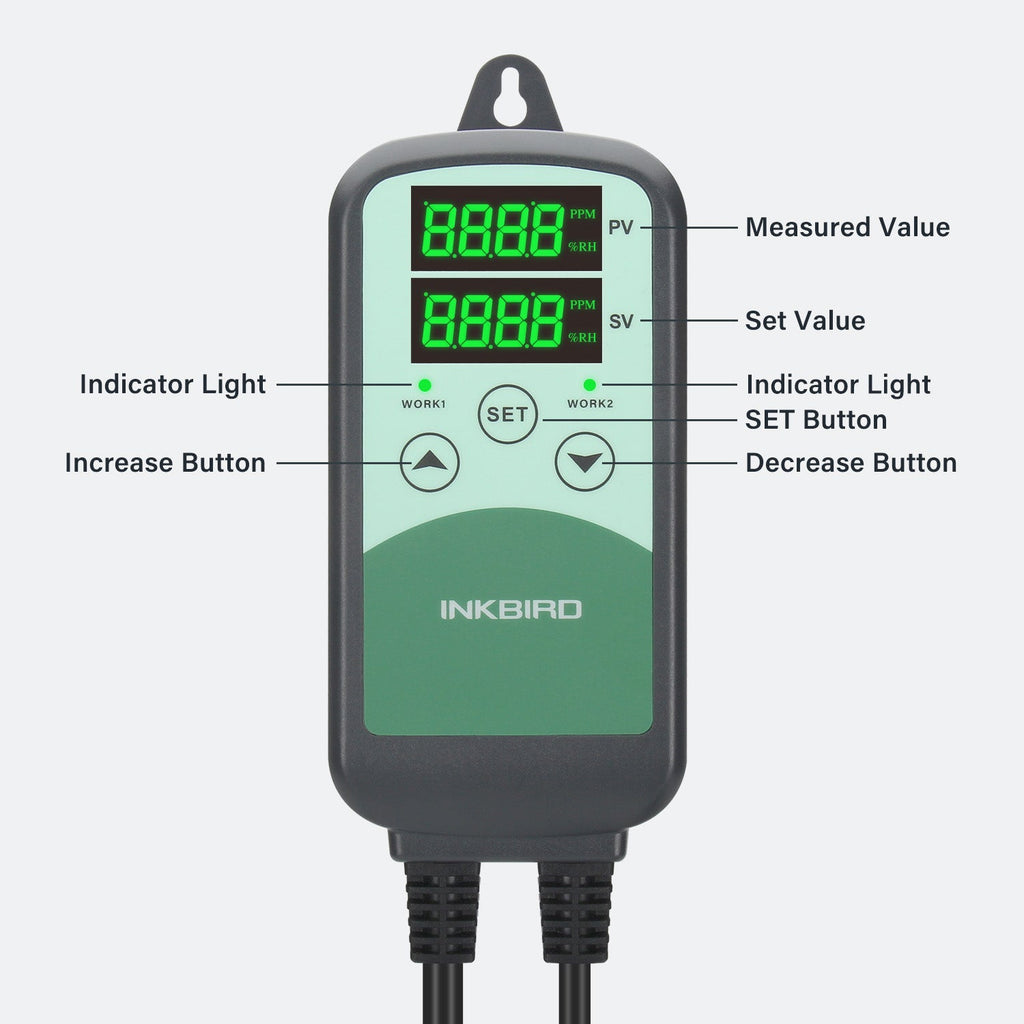

When the CO₂ sensor is inserted, the controller will take about 8 seconds to identify. Then the PV window will display 8888 and blink, the SV window will display the CO₂ concentration setting.

Waiting for about 120 seconds

After 120 seconds, CO₂ module works stably, and the PV window stops blinking and displays the measured CO₂ concentration. Within 120 seconds, the buttons cannot be operated , the indicators of WORK1 and WORK2 are off, and the WORK1 and WORK2 have no output.

Plug your devices into the socket of ICC-500T

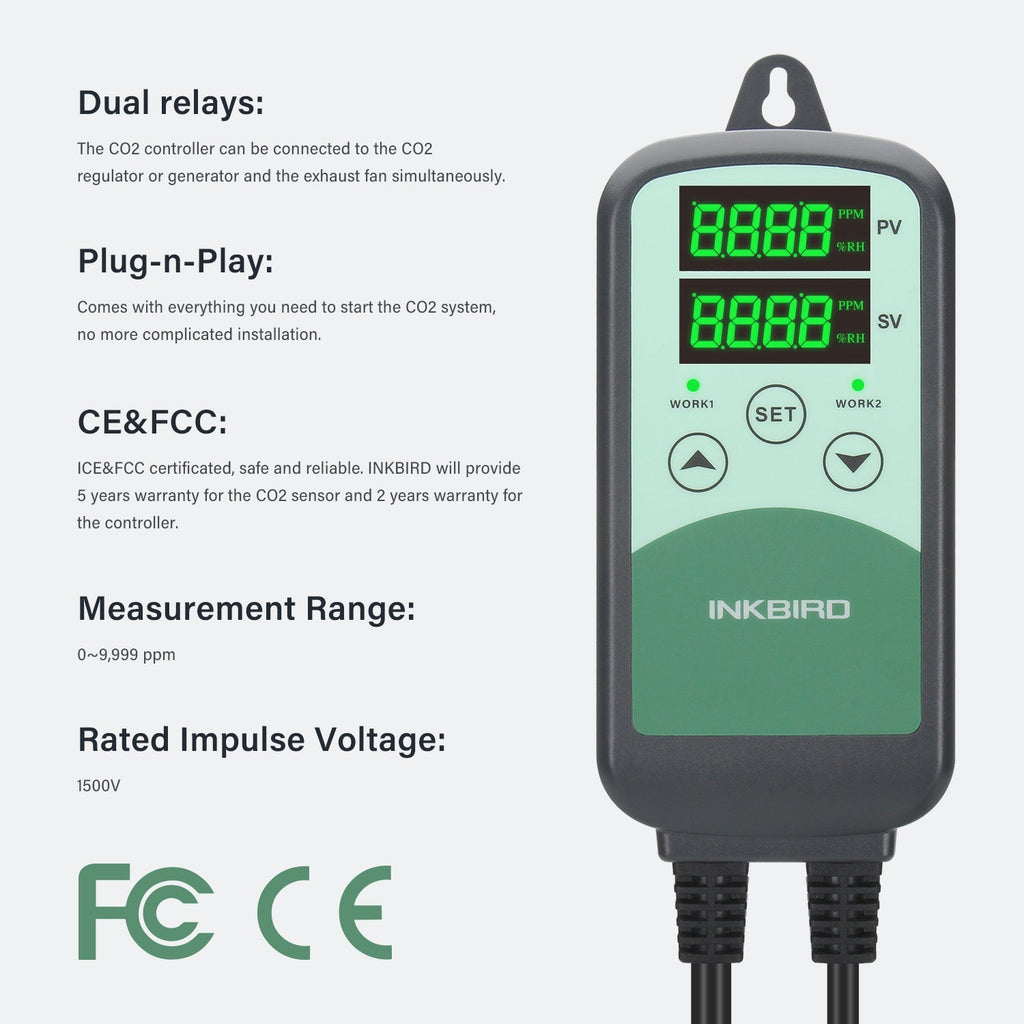

The controller will automatically identify and convert the CO₂ regulator or generator and the exhaust fan. WORK1 is the output of the CO₂ regulator or generator, and the WORK1 indicator is the WORK1 output status indicator. WORK2 is the output of the exhaust fan, and the WORK2 indicator is the WORK2 output status indicator.

WORK1 Only for the CO₂ regulator or generator, WORK2 Only for the exhaust fan.

Follow the instructions to finish the setting

There are three modes can be set, for more information about setting, please refer to the user manual on the listing page.

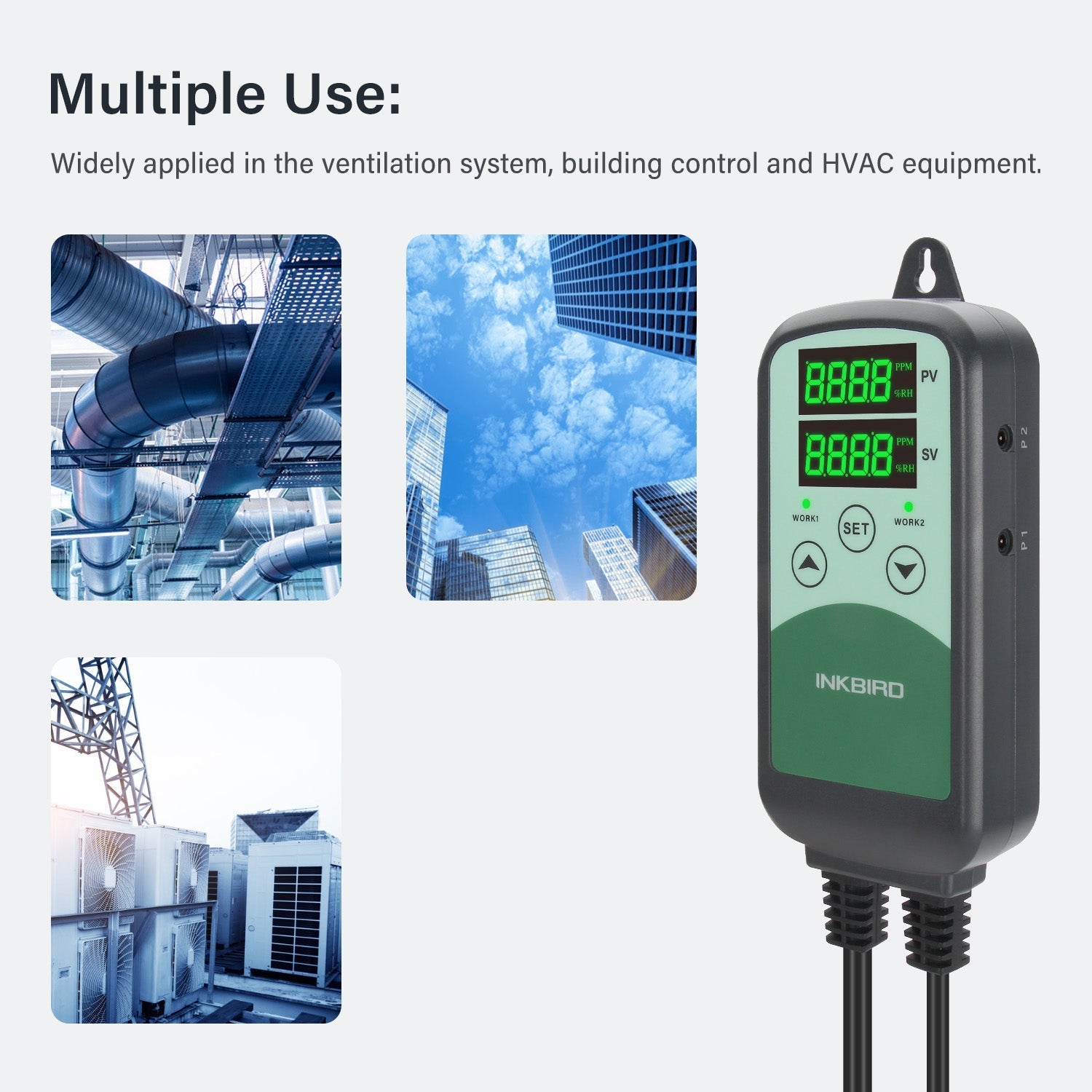

Multiple uses
